Build Rebel Engine for Android

Note

This page describes how to build Rebel Engine for Android. If you want to export your game for Android, see Exporting for Android. If you want to create a custom build for Android, also see Exporting for Android. If you want to contribute to Rebel Engine's Android platform, keep reading.

To build Rebel Engine for Android, you will need to:

  1. Install the required software

  2. Configure the build environment

  3. Compile Rebel Engine for Android

  4. Create the Rebel Engine Android templates

  5. Apply the templates

Install the required software

Rebel Engine for Android can be built on Linux, macOS and Windows. To build Rebel Engine for Android, the following software is required:

Note

Installing Android Studio will not install the command line tools by default. You can download and install the command line tools only, or use the Android Studio SDK manager to install the latest command line tools.

Configure the build environment

See Getting the source to get a copy of the Rebel Engine source code.

For a general overview of SCons usage for Rebel Engine, see Introduction to the buildsystem.

Set the environment variable ANDROID_HOME to point to the folder where the Android command-line tools are installed.

Note

Do not set the ANDROID_HOME to point to the command-line tools folder itself. Set the ANDROID_HOME to point to the folder that contains the command-line tools folder. If you installed Android Studio and used Android Studio SDK manager to install the command-line tools, set ANDROID_HOME to point to the Android/Sdk folder.

Compile Rebel Engine for Android

To compile Rebel Engine for Android, from the command line run:

scons platform=android

By default, the build system will target the debug arm64-v8a (AArch64) version of Rebel Engine. To create the release and debug Android build variants of the Rebel Engine Android templates, the target option should be set to release_debug and release respectively. See Introduction to the buildsystem for more information on Rebel Engine targets. For example, to compile Rebel Engine for Android targeting the release (arm64-v8a) build variant run:

scons platform=android target=release

Rebel Engine can be compiled for the following Android ABIs:

  • armeabi-v7a

  • arm64-v8a

  • x86

  • x86_64

You specify the target Android ABI using the android_arch option with armv7, arm64v8, x86 or x86_64. For example, to compile Rebel Engine for Android targeting the release variant and the armeabi-v7a ABI run:

scons platform=android target=release android_arch=armv7

Note

Almost all ARMv7 Android devices support Neon. Therefore, Neon is enabled by default, and all pre-built Rebel Engine Android templates have Neon enabled. To support an ARMv7 device that does not support Neon, you will need to build Rebel Engine for Android ARMv7 with Neon disabled. Add the android_neon=false option when targeting android_arch=armv7.

Note

Rebel Engine for Android is built to support all devices running Android 5 (Lollipop) and above. Android 5 was released in 2014, and Rebel Engine supports 99.5% of all Android devices. Android 5 requires a minimum Android SDK/API of 21. If you are compiling Rebel Engine for Android to add functionality only available in a newer SDK/API, you can set the NDK minimum Android SDK/API supported using the android_ndk_api option. For example, to use a minimum Android SDK of 29 (Android 10 and newer devices only), use android_ndk_api=29.

The Rebel Engine Android templates contain both the release and release_debug build variants for each of the Android ABIs. To compile the full suite of Android variants you will need to compile Rebel Engine for Android 8 times:

scons platform=android target=release android_arch=armv7
scons platform=android target=release_debug android_arch=armv7
scons platform=android target=release android_arch=arm64v8
scons platform=android target=release_debug android_arch=arm64v8
scons platform=android target=release android_arch=x86
scons platform=android target=release_debug android_arch=x86
scons platform=android target=release android_arch=x86_64
scons platform=android target=release_debug android_arch=x86_64

The Rebel Engine build system will automatically copy the compiled Rebel Engine library into the correct Android project folder. The Rebel Engine build system will also automatically copy the desired ABI's libc++_shared.so library into the correct Android project folder.

Create the Rebel Engine Android templates

Rebel Engine Android templates are created using Gradle tasks.

Note

Rebel Engine source files include the Gradle wrapper, so you do not need to install the Gradle build software.

To create the Rebel Engine Android templates, change to the platforms/android/project directory and run the createAndroidTemplates Gradle task:

cd platforms/android/project
./gradlew createAndroidTemplates

The createAndroidTemplates task creates Android package (APK) templates that will be updated by Rebel Editor when exporting for Android. The createAndroidTemplates task detects whether any release or debug build variants have been compiled. Rebel Engine Android APK templates will only be created for build variants that have been compiled. The release APK template is called android_release.apk. The debug APK template is called android_debug.apk. The created Rebel Engine Android APK template files are copied into the Rebel Engine bin directory.

The createAndroidTemplates task detects the Android ABIs for each build variant that has been previously compiled. Rebel Engine Android template APKs will automatically include the Rebel Engine libraries and required shared libraries for all the ABIs that have been previously compiled.

The createAndroidTemplates task will also create an Android project template that can be used to create Rebel Engine Android custom builds. The Rebel Engine Android project template includes the Rebel Engine library as an Android archive (.aar) file for each build variant detected. Rebel Engine library Android archive files will only be created for build variants that have been previously compiled. The Rebel Engine Android project template is compressed into a zip file called android_template.zip and saved in the Rebel Engine bin directory.

Finally, the createAndroidTemplates task will copy the created Rebel Engine library Android archive files engine-release.aar and engine-debug.aar into the bin directory.

Note

The createAndroidTemplates task will detect and include any previously compiled Android variants in the templates. To avoid including old versions of the library for variants that are not desired, before compiling the variants to be included, first run:

./gradlew cleanAndroidTemplates

Note

The createAndroidTemplates task will strip debug symbols from the Rebel Engine libraries. To keep the debug symbols use createDevelopmentAndroidTemplates instead:

./gradlew createDevelopmentAndroidTemplates

Apply the templates

The Rebel Engine Android templates that you created can be applied in two ways:

  1. Apply Rebel Engine Android templates to all games

  2. Apply Rebel Engine Android templates to a single game

Apply Rebel Engine Android templates to all games

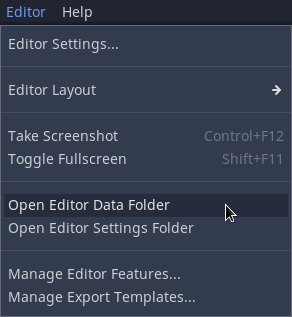

The Rebel Engine Android templates you created can be applied to all games by copying them into Rebel Editor's shared templates folder. To find the Rebel Editor's shared templates folder, open Rebel Editor. From the Editor menu, select Open Editor Data Folder.

../../_images/menu-editor-open-editor-data-folder.png

Rebel Editor's Editor menu's Open Editor Data Folder

If you have installed the Rebel Editor export templates, the Rebel Editor data folder will contain a templates folder. In the templates folder there is a folder for each version of Rebel Editor. Into the version folder that matches your version of Rebel Editor, copy the android_release.apk, android_debug.apk and android_template.zip that you created.

Apply Rebel Engine Android templates to a single game

The Rebel Engine Android APK templates you created can be applied to a single game by pointing to them in Rebel Editor's export manager for Android.

../../_images/export-manager-android-custom-templates.png

Rebel Editor's Android export custom template options

The Rebel Engine Android custom build project template you created can be applied to a single game. Simply extract the contents of the android_template.zip file you created into the game's android/project folder.
