Xcode

Xcode is a free macOS-only IDE. You can download it from the Mac App Store.

Importing the project

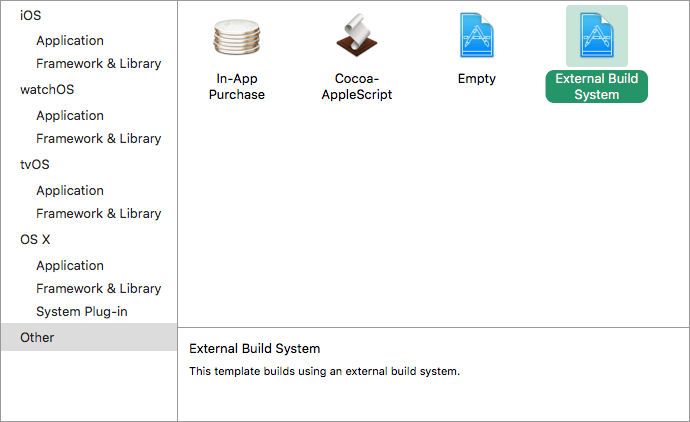

  • From Xcode's main screen create a new project using the Other > External Build System template.

../../_images/xcode_1_create_external_build_project.png

  • Open your build targets from the Targets section and select the Info tab.

  • Fill out the form with the following settings:

    Build Tool

    A full path to the scons executable, e.g. /usr/local/bin/scons

    Arguments

    See Introduction to the buildsystem for a full list of arguments.

    Directory

    A full path to the Rebel Engine root folder
../../_images/xcode_2_configure_scons.png

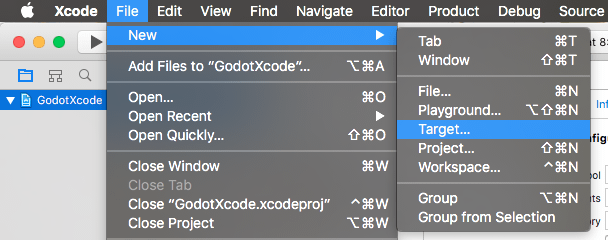

  • Add a Command Line Tool target which will be used for indexing the project by choosing File > New > Target....

../../_images/xcode_3_add_new_target.png

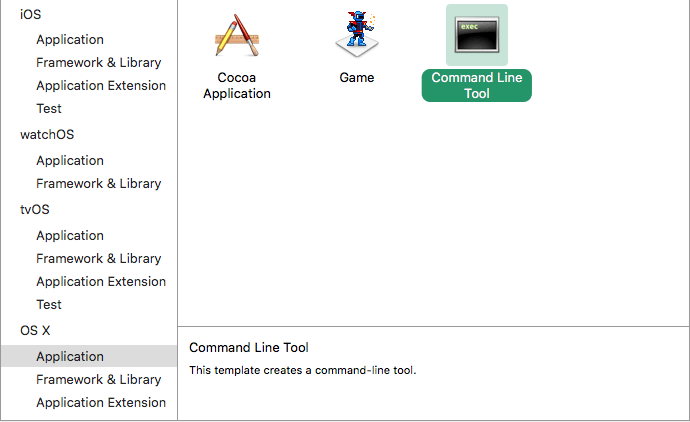

  • Select OS X > Application > Command Line Tool.

../../_images/xcode_4_select_command_line_target.png

Note

Name it something so you know not to compile with this target (e.g. RebelXcodeIndex).

  • For this target open the Build Settings tab and look for Header Search Paths.

  • Set Header Search Paths to the absolute path to the Rebel Engine root folder. You need to include subdirectories as well. To achieve that, add two two asterisks (**) to the end of the path, e.g. /Users/Me/RebelEngine/**.

  • Add the Rebel Engine source to the project by dragging and dropping it into the project file browser.

  • Uncheck Create external build system project.

../../_images/xcode_5_after_add_godot_source_to_project.png

  • Next select Create groups for the Added folders option and check only your command line indexing target in the Add to targets section.

../../_images/xcode_6_after_add_godot_source_to_project_2.png

  • Xcode will now index the files. This may take a few minutes.

  • Once Xcode is done indexing, you should have jump-to-definition, autocompletion, and full syntax highlighting.

Debugging the project

To enable debugging support you need to edit the external build target's build and run schemes.

  • Open the scheme editor of the external build target.

  • Locate the Build > Post Actions section.

  • Add a new script run action

  • Under Provide build settings from select your project. This allows to reference the project directory within the script.

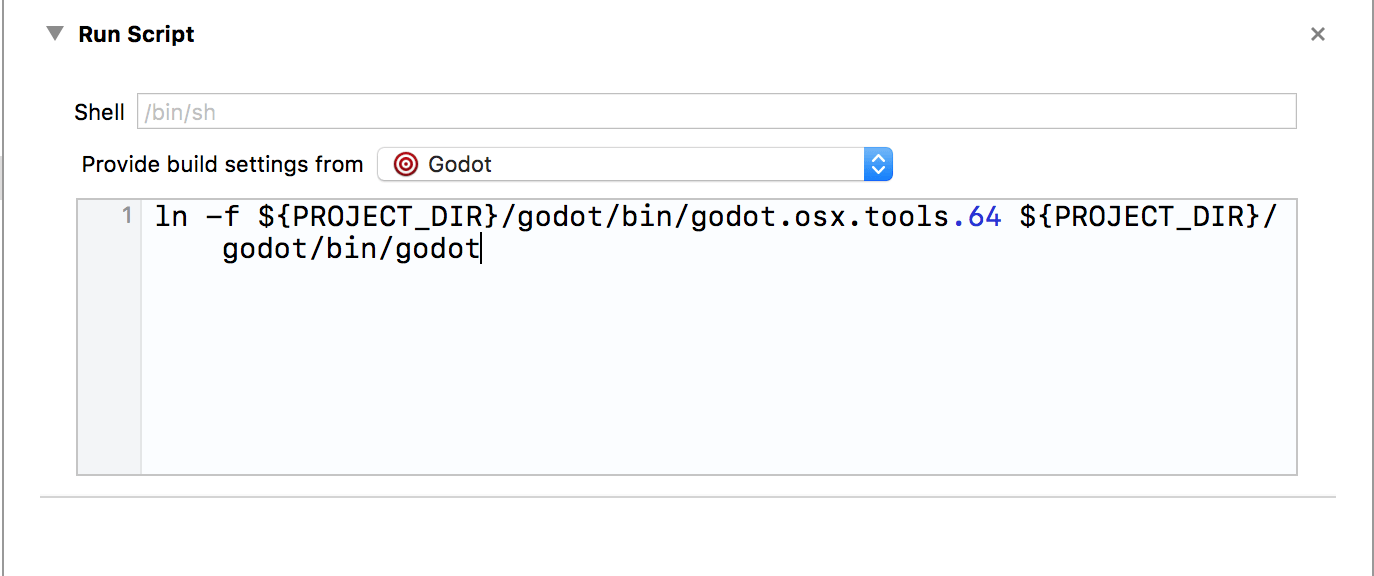

  • Create a script that will give the binary a name that Xcode can recognize, e.g.:

ln -f ${PROJECT_DIR}/RebelEngine/bin/rebel.osx.tools.64 ${PROJECT_DIR}/RebelEngine/bin/rebel
../../_images/xcode_7_setup_build_post_action.png

  • Build the external build target.

  • Open the scheme editor again and select Run.

../../_images/xcode_8_setup_run_scheme.png

  • Set the Executable to the file you linked in your post-build action script.

  • Check Debug executable.

  • You can add two arguments on the Arguments tab: the -e flag opens the editor instead of the project manager, and the --path argument tells the executable to open the specified project (must be provided as an absolute path to the project root, not the project.rebel file).
